Plastic sheet molding is a versatile and widely used manufacturing method that allows producers to create durable, flexible, and precisely shaped plastic components.
This article will walk you through the essential processes involved in plastic sheet molding, highlighting key techniques such as compression molding and thermoforming.
What Is Plastic Sheet Molding?
Plastic sheet molding is a manufacturing process that involves shaping flat plastic sheets into desired forms, meaning the plastic is heated and shaped into a specific form using molds, heat, and pressure.
This method is widely used by manufacturers to create durable and flexible plastic components for various applications.
During the process, a plastic sheet is heated until it becomes soft and pliable, allowing it to be easily molded over or into a die to achieve the desired shape and detail.
Types Of Plastic Sheet Molding Processes
Plastic sheet molding encompasses several key methods, with each kind of molding process suited for different applications and materials.
Plastic sheets are also available in various sizes to accommodate different molding processes and applications.
Thermoforming
Thermoforming is a popular plastic sheet molding process where a plastic sheet is heated to a soft, flexible state and then shaped over a mold using vacuum or pressure.
This method is typically used with thermoplastic materials such as acrylic, allowing manufacturers to create lightweight, durable parts with consistent thickness and detail.
The process is cost effective and efficient, making it ideal for producing a wide range of products, from packaging to automotive components.
Compression Molding
Compression molding is a widely used plastic sheet molding process that involves placing a heated plastic sheet or a putty-like resin into a heated mold.
Under high pressure, the material is compacted and forced to conform precisely to the mold’s shape, resulting in a durable and strong component.
Compression molding offers several benefits, including excellent control over thickness and detail, reduced material waste, and cost-effective high-volume production.
Vacuum Forming
Vacuum forming is a specialized type of plastic sheet molding that falls under the broader category of thermoforming.
In this process, a plastic sheet is heated until it becomes soft and flexible, then stretched over a mold. A vacuum is applied to suck the air out from between the sheet and the mold, causing the plastic to tightly conform to the mold’s shape.
This method is highly cost effective and efficient for producing lightweight, durable parts with consistent thickness. Vacuum forming is commonly used in a variety of projects, from packaging and automotive components to consumer products.
Pressure Forming
Pressure forming is an advanced plastic sheet molding technique that builds upon vacuum forming by adding controlled air pressure to the process.
This additional pressure allows the heated plastic sheet to be pressed more firmly and evenly against the mold, resulting in parts with greater precision, finer detail, and improved surface finish.
The method is particularly effective for creating complex shapes and intricate designs that require a high level of accuracy.

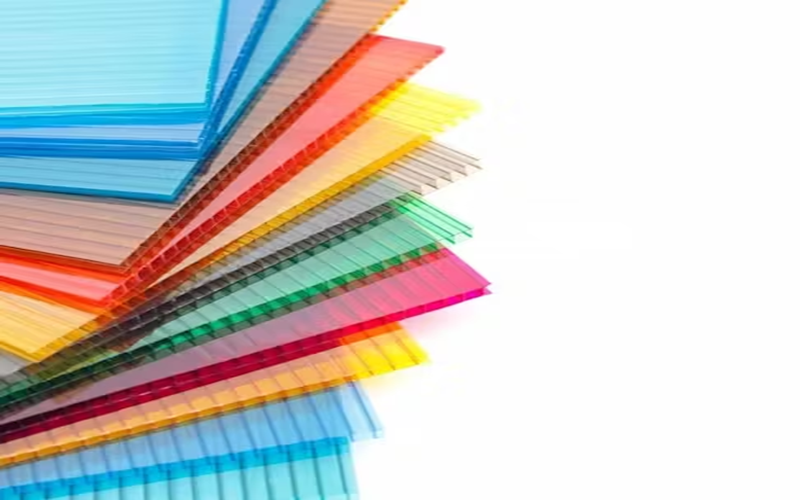

Materials Used In Plastic Sheet Molding
Plastic sheet molding utilizes a variety of materials, each chosen for their unique properties to meet specific manufacturing needs.
Acrylic
Acrylic is a widely used plastic material in sheet molding due to its excellent clarity, durability, and resistance to impact.
Acrylic sheets can be easily heated and molded into various shapes without cracking, provided the correct temperature and cooling procedures are followed, and the material becomes hard as it cools and sets into the desired shape.
Thermoplastics
Thermoplastics are a key category of materials used in plastic sheet molding due to their unique ability to soften when exposed to heat and harden upon cooling.
Common thermoplastic materials include acrylic, polycarbonate, and polyethylene, each offering distinct advantages like flexibility, durability, and resistance to impact or chemicals.
Reinforced Resins
Reinforced resins play a crucial role in plastic sheet molding by significantly enhancing the mechanical properties of molded components.
These resins are typically combined with long fibers or long strands of materials such as glass or carbon fibers, which are evenly distributed throughout the resin matrix.
This combination results in a composite material that offers superior strength, rigidity, and durability compared to standard plastics.
Sheet Molding Compound (SMC)
Sheet Molding Compound (SMC) is a composite material made from a mixture of resin, fillers, and long strands of reinforcement fibers, typically glass or carbon fibers.
This combination creates a strong, durable, and lightweight material that is ideal for plastic sheet molding processes, and SMC is typically supplied as a ready-to-mold compound for convenience.
SMC is commonly supplied in large rolls or cut pieces, which are then placed into molds and subjected to heat and pressure during compression molding.
For more detailed information about SMC’s composition and manufacturing process, refer to Wikipedia.
Other Materials
In addition to commonly used plastics like acrylic and thermoplastics, manufacturers often incorporate other materials such as polycarbonate, high-density polyethylene (HDPE), and specialty plastics into plastic sheet molding processes.
These materials offer unique advantages that enhance the performance and durability of molded products.
Plastic Sheet Molding Processes In Detail
Plastic sheet molding involves several detailed steps that ensure the final product meets the desired specifications.
Heating Plastic Sheet
The plastic sheet is heated to a specific temperature until it becomes soft and flexible, allowing it to be shaped without cracking or breaking.
Molding Sheet
Once heated, the sheet is placed over or into a mold. Depending on the method (thermoforming, compression molding, vacuum forming, or pressure forming), different techniques such as vacuum or pressure are applied to shape the plastic precisely.
Cooling And Setting
After molding, the plastic is cooled to solidify and retain the shape of the mold. Proper cooling is essential to prevent warping or cracking.
Trimming Desired Shape
The molded piece is trimmed to remove excess material and finished to achieve smooth edges and the required detail.
Applications Of Plastic Sheet Molding
Plastic sheet molding is widely used across various industries due to its versatility and efficiency.
Many suppliers support customers by providing materials, tools, and expertise for their plastic sheet molding projects. Turn to trusted suppliers for custom plastic solutions and project guidance.
Automotive Industry
The automotive industry extensively utilizes plastic sheet molding to produce a wide range of components that combine durability with lightweight characteristics.
Parts such as body panels, bumpers, interior trims, and structural reinforcements are commonly manufactured using processes like compression molding and thermoforming.
These molded plastic parts not only contribute to reducing the overall vehicle weight, enhancing fuel efficiency and performance, but also offer excellent resistance to impact, corrosion, and environmental factors.
Packaging
Packaging is a major application of plastic sheet molding, where thermoformed plastic sheets are shaped into protective and visually appealing containers.
This method allows manufacturers to create custom packaging solutions that securely protect products during shipping and handling while enhancing shelf appeal.
The use of durable and flexible plastic sheets ensures that packaging can withstand impacts, moisture, and temperature variations, making it ideal for food, electronics, and consumer goods.
Construction
In the construction industry, plastic sheet molding plays a vital role in creating durable, weather-resistant components that contribute to building longevity and safety.
Molded plastic sheets are commonly used for roofing panels, protective barriers, and decorative elements, providing excellent resistance to impact, UV radiation, and harsh environmental conditions.
Medical Devices
Plastic sheet molding plays a crucial role in the medical device industry by enabling the production of sterile, lightweight, and highly precise components.
These molded plastic parts are used in a variety of medical applications, including surgical instruments, diagnostic equipment, and packaging for sensitive medical supplies.
Conclusion
Plastic sheet molding is a highly versatile and cost-effective manufacturing process that plays a critical role across many industries, where minimizing costs is essential to improve efficiency and product quality.
It is important to note that working in a cold environment can cause the plastic to become less flexible and more prone to cracking during the molding process, so maintaining an appropriate temperature in the shop is key to preventing such issues.
For more detailed information and practical tips, be sure to visit our dedicated page on plastic sheet molding techniques, where you can learn what can happen if the process is not carefully controlled.
As technology advances, plastic sheet molding continues to offer manufacturers innovative solutions to meet growing demands for lightweight, strong, and cost-effective plastic parts in automotive, packaging, construction, and medical industries.
